Comtac: LoRa LPN MS3

12 January 2018
No Comments
in Comtac, LoRaWan Devices

Comtac: LoRa LPN MS3 https://www.resiot.io/wp-content/themes/crocal/images/empty/thumbnail.jpg 150 150 ResIOT® ResIOT® https://www.resiot.io/wp-content/themes/crocal/images/empty/thumbnail.jpg 12 January 2018 12 November 2021

Description

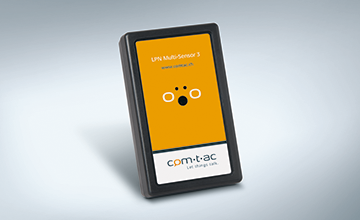

LPN MS3 is a general LoRaWAN™ device used for the detection of Temperature, Humidity, Brightness, GPS Tracking, measuring the position using an Accelelometer and measuring the magnetism with a Magnetometer.

The radio transmission is based on LoRaWAN™ long range technology at EU863-870 MHz and US902-928MHz.

Technical Features


Manufacturer	Comtac
Manufacturer Code	LMS-03
Frequency	EU863-870, US902-928MHz
Humidity Range	0% < H < 95%
Modulation	LoRa^TM
Power Supply	2 x AA Battery /24VDC
Dimension	104 mm x 62 mm x 27 mm
Temperature range	-25°C < T < +60°C

ResIOT Fully Preconfigured Model Uplink


Node Fields
Peripherals
ContactState
BatteryVoltage
Brightness
Humidity
Temperature
AccelerometerX
AccelerometerY
AccelerometerZ
GyroX
GyroY
GyroZ
MagnetometerX
MagnetometerY
MagnetometerZ
Latitude
Longitude
EstPositionError
