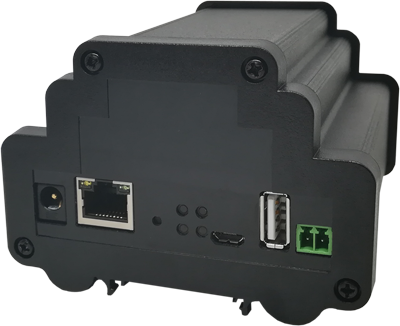

ResIOT® X2

Desk or DIN-Rail Mounting Indoor
Base Station LoRaWAN® Gateway

ResIOT® X2 is the latest Indoor LoRaWAN® Gateway/Base station model. Thanks to construction materials and DIN rail mounting case, this device is perfect to be installed in very difficult environments and meets all the requirements of any industrial application. This gateway works in a range of industrial temperatures, from -40 °C to + 85 °C. ResIOT® X2 provides durable, low-power, widearea connectivity in support of M2M and IoT applications. It is perfect for demanding markets like Smart Grid, Energy, Telecom and Broadcasting.

ResIOT® X2

Desk or DIN-Rail Mounting Indoor
Base Station LoRaWAN® Gateway

ResIOT® X2 is the latest Indoor LoRaWAN® Gateway/Base station model. Thanks to construction materials and DIN rail mounting case, this device is perfect to be installed in very difficult environments and meets all the requirements of any industrial application. This gateway works in a range of industrial temperatures, from -40 °C to + 85 °C. ResIOT® X2 provides durable, low-power, widearea connectivity in support of M2M and IoT applications. It is perfect for demanding markets like Smart Grid, Energy, Telecom and Broadcasting.

8 RADIO CHANNELS
AVAILABLE

8 RADIO CHANNELS AVAILABLE

LoRa® Multi-SF 8-channel radio card, able to receive up to 8 LoRa® modulated packets simultaneously

Icon_resiot_Retention

DATA
RETENTION

DATA RETENTION

In case of loss of connection between the gateway and the network server, the radio messages sent are not lost, but saved in the memory and forwarded later

ResIOT® Merlin IoT Box software pre-installed and ready to be used. The complete web panel for your gateway management and configuration

FULL REMOTE
MANAGEMENT

FULL REMOTE MANAGEMENT

Cloud platform included for the full remote management and configuration of your ResIOT® gateway

GLOBAL CONNECTIVITY FOR YOUR DEVICES!

Chip SIM MFF2 included and ready to be activated and MicroSIM 3FF slot available for worldwide connectivity! In addition you can use your own SIM Card or the Wi-Fi connection, available on the device as an option.

Technical Features

CPU Cortex-A7 629MHz | RAM 512Mb | eMMC Flash 4Gb
Cache 32 KB-I, 32 KB-D, 128 KB L2

DC 12÷24V
It can be powered with DC12÷24 Volt with included power supplier

RS-485 Connection
For example, for the Modbus RTU RS-485 connection to an external device or to a battery charger control system in case of power supply via solar panels (ResIOT-Solar5 kit).
Optional RS-232 and CAN-bus.

ChipSIM MFF2 | MicroSIM 3FF Slot
Chip SIM MFF2 included and ready to activate (worldwide connectivity! Visit sim.resiot.io). MicroSIM 3FF slot available. You can use your own SIM Card (ChipSIM will be automatically deactivated)

Modem 2G 3G/4G LTE | Wifi
Modem Quectel EG91x 2G-3G-4G LTE, optional Wifi

Semtech SX1303
Chipset Semtech SX1303, new generation of LoRa® baseband processor with Fine Timestamp capability that enables Time Difference of Arrival (TDOA) network-based geolocation, 8 Multi-SF LoRa Channels, Listen before talk. Able to receive up to 8 LoRa® modulated packets simultaneously

LoRaWAN® Classes A, C
Support for classes A, C

Embedded sensors
Embedded Accelerometer, Temperature & Humidity Sensors

Data Retention
In case of loss of network connection between gateway and network server the arrived radio messages are not lost, they are saved in memory and forwarded to the network server when the connection is restored.

Linux Yocto 4.1.15
KIT Toolchain available for software developer

Software ResIOT® Base Station Client/Merlin IoT Box

Software Features

Four modes of use available:

  1. LoRaWAN® Gateway with ResIOT® Merlin Base Station Client (for business or carrier-grade networks with full remote control and secure connection with ResIOT® GW Remote Access Server)
  2. LoRaWAN® Gateway with Semtech™ Packet Forwarder
  3. Industrial IoT Box. On-premises ResIOT® LoRaWAN® Network Server and ResIOT® IoT Platform all in a box with free unlimited license
  4. Hybrid Mode 1+3 LoRaWAN® Gateway with ResIOT® Merlin Base Station Client & Industrial IoT Box

Available Models

ResIOT-X2-ETH-1-868-00
ETH, LoRa

ResIOT-X2-LTE-1-868-00
ETH, LoRa, Modem 2G/3G/4G LTE + ChipSIM
MicroSIM 3FF Slot + External LTE Antenna

ResIOT-X2-LTE-1-868-IA
ETH, LoRa, Modem 2G/3G/4G LTE + ChipSIM
MicroSIM 3FF Slot + Internal LTE Antenna

ResIOT-X2-ETH-1-868-0W
ETH, LoRa, Wifi + External Wifi Antenna
