ResIOT-X7 LoRaWAN™ Gateway/Base station Carrier-grade
ResIOT™ presents the latest generation of LoRaWAN™ Gateway/Base station Carrier-grade.
It is ideal for demanding markets: Smart Grid, Energy, Telecom and Broadcasting. This flexible solution provides durable, low-power, widearea connectivity in support of M2M and IoT applications. It is suitable for outdoor installation. The ResIOT-X7 gateway supports a range of industrial temperatures: -40 °C / + 85 °C
| ResIOT-X7 Specifications | |
|---|---|
| Processor & Memory | ARM Cortex-A7 Processor 528/629MHz RAM DDR3 512MB, 4GB eMMC Flash, Cache 32 KB-I, 32 KB-D, 128 KB L2 |
| Radio LoRa | Up to 4 x card with: Chipset Semtech SX1301 + 2*SX1257 RF end-front, 8 Multi-SF LoRa Channels, Listen before talk Able to receive up to 32 LoRa® modulated packets simultaneously Protocol 1.02, 1.03, 1.1. Class A,B,C (B only with Gps/Gnss version) Max TX Power +27 dBm, Receiving Sensitivity -142.5dBm Available frequencies: 868 MHz and 915 MHz ISM bands |
| Power Supply/ Consumption | PoE-Power over ethernet Input 42~60 VDC IEEE 802.3af, Max 5W for models ResIOT-X7-ETH-1-868-00,ResIOT-X7-ETH-1-868-G0 PoE-Power over ethernet Input 42~60 VDC IEEE 802.3af, Max 8W for models ResIOT-X7-LTE-1-868-00,ResIOT-X7-LTE-1-868-G0 PoE-Power over ethernet Input 42~60 VDC IEEE 802.3af, Max 13W for models ResIOT-X7-ETH-2-868-G0,ResIOT-X7-LTE-2-868-G0 PoE-Power over ethernet Input 42~60 VDC IEEE 802.3at, Max 18W for models ResIOT-X7-ETH-3-868-G0,ResIOT-X7-LTE-3-868-G0 PoE-Power over ethernet Input 42~60 VDC IEEE 802.3at, Max 23W for models ResIOT-X7-ETH-4-868-G0,ResIOT-X7-LTE-4-868-G0 or direct supply 12-30 VDC (for Direct power supply or via Solar Panels) |
| Short power outage support | with Supercapacitors, max time 120sec |
| Sensors and parameter monitoring | Accelerometer, Shock, Inclination, Temperature, Humidity, Voltage input POE or DC 12-30V, Supercap state, Cpu, Memory, eMMC Flash, Modem connection state, signal quality, operator 2G/3G/4g + monitor via RS485 external device |
| Working Temp. | -40°C~85°C. Operating Humidity 10%~90%, non-condensing |
| Gps/GNSS | GNSS: BeiDou, Galileo, GLONASS, GPS / QZSS Number of concurrent GNSS: 3 |
| Modem | GLOBAL EDGE, GSM/GPRS, 3G, 4G, LTE Regulatory: GCF/ CE/ FCC/ PTCRB/ IC/ Anatel/ IFETEL/ SRRC/ NAL/ CCC/ KC/ NCC/ JATE/ TELEC/ RCM/ ICASA |
| Connectors | Ethernet 1 RJ-45 10/100 (PoE) LoRa 1xNTYPE (Optional 2xNTYPE, 3xNTYPE or 4xNTYPE) Optional Gps/GNSS 1xNTYPE Optional 2xLTE Antennas IP67 6 Pin connectors for optional 12VDC power supply and RS485 optional RS232/CAN-bus |
| Connected External Devices | Modbus via RS485, fully programmable Optional RS232 and CAN-bus |
| OS | Linux 4.1.15 (Yocto) |
| Software | SSH, OpenVPN Three modes of use: 1) LoRaWAN Gateway with ResIOT Base Station Client (for simple or carrier-grade networks with full remote control and secure connection with ResIOT GW Remote Access Server) 2) LoRaWAN Gateway with Semtech Packet Forwarder 3) Industrial IoT Box. On-premises ResIOT LoRaWAN Network Server and ResIOT IoT Platform all in a box with free license 5 nodes upgradable to 96 |
| Size / Dimension | 258mm x 228mm x Height 90mm |
| Weight | 2.65 Kg |
| Material, Chassis Type | IP67 Aluminum |
ResIOT-X7 ORDERING INFORMATION
| Model | Frequency Support | Description | Radio Channels | GPS GLONASS | GPS / GLONASS Antenna | Modem 2G/3G/LTE | LoRa Antenna Plugs | 2G/3G/LTE Antenna | LoRaWAN Class Device support | Pre-installed Software |
|---|---|---|---|---|---|---|---|---|---|---|

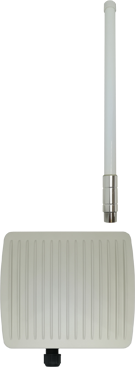

| ResIOT-X7-ETH-1-868-00 | 863..870 MHz | ResIOT X7 LoRaWAN Gateway/Base station Carrier-grade 8 channels 868Mhz, Ethernet, PoE Included: 1xPole and Wall mount bracket, 1xLoRa Antenna omni 868MhZ IP67 465x27mm 3.8 dBi | 8 | N | N | N | 1 x IP67 3.8 dBi Length 465mm | N | A, C | ResIOT Merlin IoT Box/Base Station Client, SSH Access, Custom configurable for other network servers |
| ResIOT-X7-ETH-1-868-G0 | 863..870 MHz | ResIOT X7 LoRaWAN Gateway/Base station Carrier-grade 8 channels 868Mhz, GNSS, Ethernet, PoE Included: 1xPole and Wall mount bracket, 1xLoRa Antenna omni 868MhZ IP67 465x27mm 3.8 dBi, 1xGPS/GLONASS Antenna IP67 | 8 | YES | 1 x IP67 | N | 1 x IP67 3.8 dBi Length 465mm | N | A, B, C | ResIOT Merlin IoT Box/Base Station Client, SSH Access, Custom configurable for other network servers |

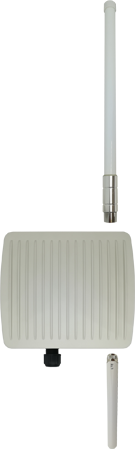

| ResIOT-X7-LTE-1-868-00 | 863..870 MHz | ResIOT X7 LoRaWAN Gateway/Base station Carrier-grade 8 channels 868Mhz, Ethernet,LTE/4G/3G/2G Modem , PoE Included: 1xPole and Wall mount bracket, 1xLoRa Antenna omni 868MhZ IP67 465x27mm 3.8 dBi, 2xLTE Antenna IP67 | 8 | N | N | YES | 1 x IP67 3.8 dBi Length 465mm | 1 x IP67 | A, C | ResIOT Merlin IoT Box/Base Station Client, SSH Access, Custom configurable for other network servers |

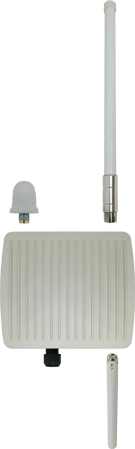

| ResIOT-X7-LTE-1-868-G0 | 863..870 MHz | ResIOT X7 LoRaWAN Gateway/Base station Carrier-grade 8 channels 868Mhz, GNSS, Ethernet,LTE/4G/3G/2G Modem , PoE Included: 1xPole and Wall mount bracket, 1xLoRa Antenna omni 868MhZ IP67 465x27mm 3.8 dBi, 1xGPS/GLONASS Antenna IP67, 2xLTE Antenna IP67 | 8 | YES | 1 x IP67 | YES | 1 x IP67 3.8 dBi Length 465mm | 1 x IP67 | A, B, C | ResIOT Merlin IoT Box/Base Station Client, SSH Access, Custom configurable for other network servers |
| ResIOT-X7-ETH-2-868-G0 | 863..870 MHz | ResIOT X7 LoRaWAN Gateway/Base station Carrier-grade 16 channels 868Mhz(2x8), GNSS, Ethernet, PoE,Full duplex support. Included: 1xPole and Wall mount bracket, 2xLoRa Antenna omni 868MhZ IP67 465x27mm 3.8 dBi, 1xGPS/GLONASS Antenna IP67 | 16 | YES | 1 x IP67 | N | 2 x IP67 3.8 dBi Length 465mm | N | A, B, C | ResIOT Merlin IoT Box/Base Station Client, SSH Access, Custom configurable for other network servers |

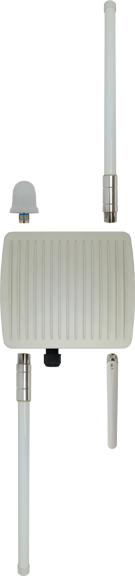

| ResIOT-X7-LTE-2-868-G0 | 863..870 MHz | ResIOT X7 LoRaWAN Gateway/Base station Carrier-grade 16 channels 868Mhz(2x8), GNSS, Ethernet,LTE/4G/3G/2G Modem , PoE,Full duplex support. Included: 1xPole and Wall mount bracket, 2xLoRa Antenna omni 868MhZ IP67 465x27mm 3.8 dBi, 1xGPS/GLONASS Antenna IP67, 2xLTE Antenna IP67 | 16 | YES | 1 x IP67 | YES | 2 x IP67 3.8 dBi Length 465mm | 1 x IP67 | A, B, C | ResIOT Merlin IoT Box/Base Station Client, SSH Access, Custom configurable for other network servers |
| ResIOT-X7-ETH-3-868-G0 | 863..870 MHz | ResIOT X7 LoRaWAN Gateway/Base station Carrier-grade 24 channels 868Mhz(3x8), GNSS, Ethernet, PoE,Full duplex support. Included: 1xPole and Wall mount bracket, 2xLoRa Antenna omni 868MhZ IP67 465x27mm 3.8 dBi, 1xGPS/GLONASS Antenna IP67 | 24 | YES | 1 x IP67 | N | 3 x IP67 3.8 dBi Length 465mm | N | A, B, C | ResIOT Merlin IoT Box/Base Station Client, SSH Access, Custom configurable for other network servers |

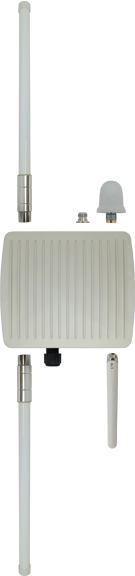

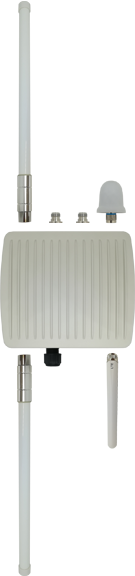

| ResIOT-X7-LTE-3-868-G0 | 863..870 MHz | ResIOT X7 LoRaWAN Gateway/Base station Carrier-grade 24 channels 868Mhz(3x8), GNSS, Ethernet,LTE/4G/3G/2G Modem , PoE,Full duplex support. Included: 1xPole and Wall mount bracket, 2xLoRa Antenna omni 868MhZ IP67 465x27mm 3.8 dBi, 1xGPS/GLONASS Antenna IP67, 2xLTE Antenna IP67 | 24 | YES | 1 x IP67 | YES | 3 x IP67 3.8 dBi Length 465mm | 1 x IP67 | A, B, C | ResIOT Merlin IoT Box/Base Station Client, SSH Access, Custom configurable for other network servers |
| ResIOT-X7-ETH-4-868-00 | 863..870 MHz | ResIOT X7 LoRaWAN Gateway/Base station Carrier-grade 32 channels 868Mhz(4x8), Ethernet, PoE,Full duplex support. Included: 1xPole and Wall mount bracket, 2xLoRa Antenna omni 868MhZ IP67 465x27mm 3.8 dBi | 32 | N | N | N | 4 x IP67 3.8 dBi Length 465mm | N | A, B, C | ResIOT Merlin IoT Box/Base Station Client, SSH Access, Custom configurable for other network servers |
| ResIOT-X7-LTE-4-868-00 | 863..870 MHz | ResIOT X7 LoRaWAN Gateway/Base station Carrier-grade 32 channels 868Mhz(4x8), Ethernet,LTE/4G/3G/2G Modem, PoE, Full duplex support. Included: 1xPole and Wall mount bracket, 2xLoRa Antenna omni 868MhZ IP67 465x27mm 3.8 dBi, 2xLTE Antenna IP67 | 32 | N | N | YES | 4 x IP67 3.8 dBi Length 465mm | 1 x IP67 | A, B, C | ResIOT Merlin IoT Box/Base Station Client, SSH Access, Custom configurable for other network servers |
| ResIOT-X7-ETH-1-915-00 | 902.928 MHz | ResIOT X7 Carrier-grade Base station 8 channels 915Mhz, Ethernet, PoE Included: 1xPole and Wall mount bracket, 1xLoRa Antenna omni 915MhZ IP67 465x27mm 3.8 dBi | 8 | N | N | N | 1 x IP67 3.8 dBi Length 465mm | N | A, C | ResIOT Merlin IoT Box/Base Station Client, SSH Access, Custom configurable for other network servers |
| ResIOT-X7-ETH-1-915-G0 | 902.928 MHz | ResIOT X7 Carrier-grade Base station 8 channels 915Mhz, GNSS, Ethernet, PoE Included: 1xPole and Wall mount bracket, 1xLoRa Antenna omni 915MhZ IP67 465x27mm 3.8 dBi, 1xGPS/GLONASS Antenna IP67 | 8 | YES | 1 x IP67 | N | 1 x IP67 3.8 dBi Length 465mm | N | A, B, C | ResIOT Merlin IoT Box/Base Station Client, SSH Access, Custom configurable for other network servers |
| ResIOT-X7-LTE-1-915-00 | 902.928 MHz | ResIOT X7 Carrier-grade Base station 8 channels 915Mhz, Ethernet,LTE/4G/3G/2G Modem , PoE Included: 1xPole and Wall mount bracket, 1xLoRa Antenna omni 915MhZ IP67 465x27mm 3.8 dBi, 2xLTE Antenna IP67 | 8 | N | N | YES | 1 x IP67 3.8 dBi Length 465mm | 1 x IP67 | A, C | ResIOT Merlin IoT Box/Base Station Client, SSH Access, Custom configurable for other network servers |
| ResIOT-X7-LTE-1-915-G0 | 902.928 MHz | ResIOT X7 Carrier-grade Base station 8 channels 915Mhz, GNSS, Ethernet,LTE/4G/3G/2G Modem , PoE Included: 1xPole and Wall mount bracket, 1xLoRa Antenna omni 915MhZ IP67 465x27mm 3.8 dBi, 1xGPS/GLONASS Antenna IP67, 2xLTE Antenna IP67 | 8 | YES | 1 x IP67 | YES | 1 x IP67 3.8 dBi Length 465mm | 1 x IP67 | A, B, C | ResIOT Merlin IoT Box/Base Station Client, SSH Access, Custom configurable for other network servers |
| ResIOT-X7-ETH-2-915-G0 | 902.928 MHz | ResIOT X7 Carrier-grade Base station 16 channels 915Mhz(2x8), GNSS, Ethernet, PoE,Full duplex support. Included: 1xPole and Wall mount bracket, 2xLoRa Antenna omni 915MhZ IP67 465x27mm 3.8 dBi, 1xGPS/GLONASS Antenna IP67 | 16 | YES | 1 x IP67 | N | 2 x IP67 3.8 dBi Length 465mm | N | A, B, C | ResIOT Merlin IoT Box/Base Station Client, SSH Access, Custom configurable for other network servers |
| ResIOT-X7-LTE-2-915-G0 | 902.928 MHz | ResIOT X7 Carrier-grade Base station 16 channels 915Mhz(2x8), GNSS, Ethernet,LTE/4G/3G/2G Modem, PoE,Full duplex support. Included: 1xPole and Wall mount bracket, 2xLoRa Antenna omni 915MhZ IP67 465x27mm 3.8 dBi, 1xGPS/GLONASS Antenna IP67, 2xLTE Antenna IP67 | 16 | YES | 1 x IP67 | YES | 2 x IP67 3.8 dBi Length 465mm | 1 x IP67 | A, B, C | ResIOT Merlin IoT Box/Base Station Client, SSH Access, Custom configurable for other network servers |
| ResIOT-X7-ETH-3-915-G0 | 902.928 MHz | ResIOT X7 Carrier-grade Base station 24 channels 915Mhz(3x8), GNSS, Ethernet, PoE,Full duplex support. Included: 1xPole and Wall mount bracket, 2xLoRa Antenna omni 915MhZ IP67 465x27mm 3.8 dBi, 1xGPS/GLONASS Antenna IP67 | 24 | YES | 1 x IP67 | N | 3 x IP67 3.8 dBi Length 465mm | N | A, B, C | ResIOT Merlin IoT Box/Base Station Client, SSH Access, Custom configurable for other network servers |
| ResIOT-X7-LTE-3-915-G0 | 902.928 MHz | ResIOT X7 Carrier-grade Base station 24 channels 915Mhz(3x8), GNSS, Ethernet,LTE/4G/3G/2G Modem, PoE,Full duplex support. Included: 1xPole and Wall mount bracket, 2xLoRa Antenna omni 915MhZ IP67 465x27mm 3.8 dBi, 1xGPS/GLONASS Antenna IP67, 2xLTE Antenna IP67 | 24 | YES | 1 x IP67 | YES | 3 x IP67 3.8 dBi Length 465mm | 1 x IP67 | A, B, C | ResIOT Merlin IoT Box/Base Station Client, SSH Access, Custom configurable for other network servers |
