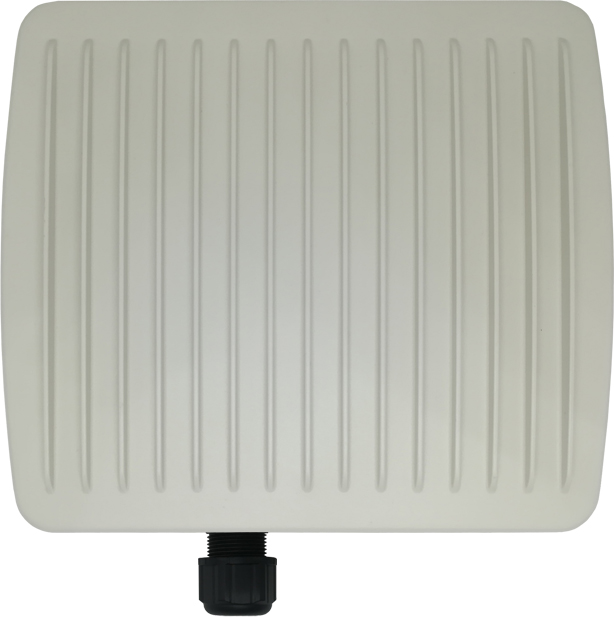

ResIOT-X7 LoRaWAN™ Gateway/Base station Carrier-grade

ResIOT™ presenta l’ultima generazione di Gateway/Base Station LoRaWAN™ Carrier-grade.

È ideale per mercati esigenti: Smart Grid, Energy, Telecom e Broadcasting. Questa soluzione flessibile offre connettività duratura, a bassa potenza e su ampie aree a supporto delle applicazioni M2M e IoT. È adatto per installazione esterna. Il gateway ResIOT-X7 supporta una gamma di temperature industriali: -40 ° C / + 85 ° C

 ResIOT-X7 Specifications
Processor & MemoryARM Cortex-A7 Processor 528/629MHz
RAM DDR3 512MB, 4GB eMMC Flash, Cache 32 KB-I, 32 KB-D, 128 KB L2
Radio LoRaUp to 4 x card with:
Chipset Semtech SX1301 + 2*SX1257 RF end-front, 8 Multi-SF LoRa Channels, Listen before talk
Able to receive up to 32 LoRa® modulated packets simultaneously
Protocol 1.02, 1.03, 1.1. Class A,B,C (B only with Gps/Gnss version)
Max TX Power +27 dBm, Receiving Sensitivity -142.5dBm
Available frequencies: 868 MHz and 915 MHz ISM bands
Power Supply/ ConsumptionPoE-Power over ethernet Input 42~60 VDC IEEE 802.3af, Max 5W for models ResIOT-X7-ETH-1-868-00,ResIOT-X7-ETH-1-868-G0
PoE-Power over ethernet Input 42~60 VDC IEEE 802.3af, Max 8W for models ResIOT-X7-LTE-1-868-00,ResIOT-X7-LTE-1-868-G0
PoE-Power over ethernet Input 42~60 VDC IEEE 802.3af, Max 13W for models ResIOT-X7-ETH-2-868-G0,ResIOT-X7-LTE-2-868-G0
PoE-Power over ethernet Input 42~60 VDC IEEE 802.3at, Max 18W for models ResIOT-X7-ETH-3-868-G0,ResIOT-X7-LTE-3-868-G0
PoE-Power over ethernet Input 42~60 VDC IEEE 802.3at, Max 23W for models ResIOT-X7-ETH-4-868-G0,ResIOT-X7-LTE-4-868-G0
or direct supply 12-30 VDC (for Direct power supply or via Solar Panels)
Short power outage supportwith Supercapacitors, max time 120sec
Sensors and parameter monitoringAccelerometer, Shock, Inclination, Temperature, Humidity, Voltage input POE or DC 12-30V, Supercap state, Cpu, Memory, eMMC Flash, Modem connection state, signal quality, operator 2G/3G/4g + monitor via RS485 external device
Working Temp.-40°C~85°C. Operating Humidity 10%~90%, non-condensing
Gps/GNSSGNSS: BeiDou, Galileo, GLONASS, GPS / QZSS
Number of concurrent GNSS: 3
ModemGLOBAL EDGE, GSM/GPRS, 3G, 4G, LTE
Regulatory: GCF/ CE/ FCC/ PTCRB/ IC/ Anatel/ IFETEL/ SRRC/ NAL/ CCC/ KC/ NCC/ JATE/ TELEC/ RCM/ ICASA
ConnectorsEthernet 1 RJ-45 10/100 (PoE)
LoRa 1xNTYPE (Optional 2xNTYPE, 3xNTYPE or 4xNTYPE)
Optional Gps/GNSS 1xNTYPE
Optional 2xLTE Antennas IP67
6 Pin connectors for optional 12VDC power supply and RS485
optional RS232/CAN-bus
Connected External DevicesModbus via RS485, fully programmable
Optional RS232 and CAN-bus
OSLinux 4.1.15 (Yocto)
Software SSH, OpenVPN
Three modes of use:
1) LoRaWAN Gateway with ResIOT Base Station Client (for simple or carrier-grade networks with full remote control and secure connection with ResIOT GW Remote Access Server)
2) LoRaWAN Gateway with Semtech Packet Forwarder
3) Industrial IoT Box. On-premises ResIOT LoRaWAN Network Server and ResIOT IoT Platform all in a box with free license 5 nodes upgradable to 96
Size / Dimension258mm x 228mm x Height 90mm
Weight2.65 Kg
Material, Chassis TypeIP67 Aluminum

ResIOT-X7 ORDERING INFORMATION

ModelFrequency
Support
DescriptionRadio
Channels
GPS
GLONASS
GPS / GLONASS
Antenna
Modem
2G/3G/LTE
LoRa Antenna Plugs2G/3G/LTE
Antenna
LoRaWAN Class
Device support
Pre-installed Software

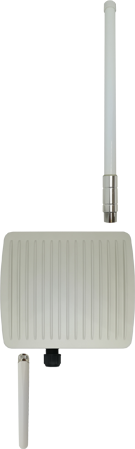

ResIOT-X7-ETH-1-868-00863..870 MHzResIOT X7 LoRaWAN Gateway/Base station Carrier-grade 8 channels 868Mhz, Ethernet, PoE
Included: 1xPole and Wall mount bracket, 1xLoRa Antenna omni 868MhZ IP67 465x27mm 3.8 dBi
8NNN1 x IP67 3.8 dBi
Length 465mm
NA, CResIOT Merlin IoT Box/Base Station Client,
SSH Access, Custom configurable for other
network servers
ResIOT-X7-ETH-1-868-G0863..870 MHzResIOT X7 LoRaWAN Gateway/Base station Carrier-grade 8 channels 868Mhz, GNSS, Ethernet, PoE
Included: 1xPole and Wall mount bracket, 1xLoRa Antenna omni 868MhZ IP67 465x27mm 3.8 dBi, 1xGPS/GLONASS Antenna IP67
8YES1 x IP67N1 x IP67 3.8 dBi
Length 465mm
NA, B, CResIOT Merlin IoT Box/Base Station Client,
SSH Access, Custom configurable for other
network servers
ResIOT-X7-LTE-1-868-00863..870 MHzResIOT X7 LoRaWAN Gateway/Base station Carrier-grade 8 channels 868Mhz, Ethernet,LTE/4G/3G/2G Modem , PoE
Included: 1xPole and Wall mount bracket, 1xLoRa Antenna omni 868MhZ IP67 465x27mm 3.8 dBi, 2xLTE Antenna IP67
8NNYES1 x IP67 3.8 dBi
Length 465mm
1 x IP67A, CResIOT Merlin IoT Box/Base Station Client,
SSH Access, Custom configurable for other
network servers
ResIOT-X7-LTE-1-868-G0863..870 MHzResIOT X7 LoRaWAN Gateway/Base station Carrier-grade 8 channels 868Mhz, GNSS, Ethernet,LTE/4G/3G/2G Modem , PoE
Included: 1xPole and Wall mount bracket, 1xLoRa Antenna omni 868MhZ IP67 465x27mm 3.8 dBi, 1xGPS/GLONASS Antenna IP67, 2xLTE Antenna IP67
8YES1 x IP67YES1 x IP67 3.8 dBi
Length 465mm
1 x IP67A, B, CResIOT Merlin IoT Box/Base Station Client,
SSH Access, Custom configurable for other
network servers
ResIOT-X7-ETH-2-868-G0863..870 MHzResIOT X7 LoRaWAN Gateway/Base station Carrier-grade 16 channels 868Mhz(2x8), GNSS, Ethernet, PoE,Full duplex support.
Included: 1xPole and Wall mount bracket, 2xLoRa Antenna omni 868MhZ IP67 465x27mm 3.8 dBi, 1xGPS/GLONASS Antenna IP67
16YES1 x IP67N2 x IP67 3.8 dBi
Length 465mm
NA, B, CResIOT Merlin IoT Box/Base Station Client,
SSH Access, Custom configurable for other
network servers
ResIOT-X7-LTE-2-868-G0863..870 MHzResIOT X7 LoRaWAN Gateway/Base station Carrier-grade 16 channels 868Mhz(2x8), GNSS, Ethernet,LTE/4G/3G/2G Modem , PoE,Full duplex support.
Included: 1xPole and Wall mount bracket, 2xLoRa Antenna omni 868MhZ IP67 465x27mm 3.8 dBi, 1xGPS/GLONASS Antenna IP67, 2xLTE Antenna IP67
16YES1 x IP67YES2 x IP67 3.8 dBi
Length 465mm
1 x IP67A, B, CResIOT Merlin IoT Box/Base Station Client,
SSH Access, Custom configurable for other
network servers
ResIOT-X7-ETH-3-868-G0863..870 MHzResIOT X7 LoRaWAN Gateway/Base station Carrier-grade 24 channels 868Mhz(3x8), GNSS, Ethernet, PoE,Full duplex support.
Included: 1xPole and Wall mount bracket, 2xLoRa Antenna omni 868MhZ IP67 465x27mm 3.8 dBi, 1xGPS/GLONASS Antenna IP67
24YES1 x IP67N3 x IP67 3.8 dBi
Length 465mm
NA, B, CResIOT Merlin IoT Box/Base Station Client,
SSH Access, Custom configurable for other
network servers
ResIOT-X7-LTE-3-868-G0863..870 MHzResIOT X7 LoRaWAN Gateway/Base station Carrier-grade 24 channels 868Mhz(3x8), GNSS, Ethernet,LTE/4G/3G/2G Modem , PoE,Full duplex support.
Included: 1xPole and Wall mount bracket, 2xLoRa Antenna omni 868MhZ IP67 465x27mm 3.8 dBi, 1xGPS/GLONASS Antenna IP67, 2xLTE Antenna IP67
24YES1 x IP67YES3 x IP67 3.8 dBi
Length 465mm
1 x IP67A, B, CResIOT Merlin IoT Box/Base Station Client,
SSH Access, Custom configurable for other
network servers
ResIOT-X7-ETH-4-868-00863..870 MHzResIOT X7 LoRaWAN Gateway/Base station Carrier-grade 32 channels 868Mhz(4x8), Ethernet, PoE,Full duplex support.
Included: 1xPole and Wall mount bracket, 2xLoRa Antenna omni 868MhZ IP67 465x27mm 3.8 dBi
32NNN4 x IP67 3.8 dBi
Length 465mm
NA, B, CResIOT Merlin IoT Box/Base Station Client,
SSH Access, Custom configurable for other
network servers
ResIOT-X7-LTE-4-868-00863..870 MHzResIOT X7 LoRaWAN Gateway/Base station Carrier-grade 32 channels 868Mhz(4x8), Ethernet,LTE/4G/3G/2G Modem, PoE, Full duplex support.
Included: 1xPole and Wall mount bracket, 2xLoRa Antenna omni 868MhZ IP67 465x27mm 3.8 dBi, 2xLTE Antenna IP67
32NNYES4 x IP67 3.8 dBi
Length 465mm
1 x IP67A, B, CResIOT Merlin IoT Box/Base Station Client,
SSH Access, Custom configurable for other
network servers
ResIOT-X7-ETH-1-915-00902.928 MHzResIOT X7 Carrier-grade Base station 8 channels 915Mhz, Ethernet, PoE
Included: 1xPole and Wall mount bracket, 1xLoRa Antenna omni 915MhZ IP67 465x27mm 3.8 dBi
8NNN1 x IP67 3.8 dBi
Length 465mm
NA, CResIOT Merlin IoT Box/Base Station Client,
SSH Access, Custom configurable for other
network servers
ResIOT-X7-ETH-1-915-G0902.928 MHzResIOT X7 Carrier-grade Base station 8 channels 915Mhz, GNSS, Ethernet, PoE
Included: 1xPole and Wall mount bracket, 1xLoRa Antenna omni 915MhZ IP67 465x27mm 3.8 dBi, 1xGPS/GLONASS Antenna IP67
8YES1 x IP67N1 x IP67 3.8 dBi
Length 465mm
NA, B, CResIOT Merlin IoT Box/Base Station Client,
SSH Access, Custom configurable for other
network servers
ResIOT-X7-LTE-1-915-00902.928 MHzResIOT X7 Carrier-grade Base station 8 channels 915Mhz, Ethernet,LTE/4G/3G/2G Modem , PoE
Included: 1xPole and Wall mount bracket, 1xLoRa Antenna omni 915MhZ IP67 465x27mm 3.8 dBi, 2xLTE Antenna IP67
8NNYES1 x IP67 3.8 dBi
Length 465mm
1 x IP67A, CResIOT Merlin IoT Box/Base Station Client,
SSH Access, Custom configurable for other
network servers
ResIOT-X7-LTE-1-915-G0902.928 MHzResIOT X7 Carrier-grade Base station 8 channels 915Mhz, GNSS, Ethernet,LTE/4G/3G/2G Modem , PoE
Included: 1xPole and Wall mount bracket, 1xLoRa Antenna omni 915MhZ IP67 465x27mm 3.8 dBi, 1xGPS/GLONASS Antenna IP67, 2xLTE Antenna IP67
8YES1 x IP67YES1 x IP67 3.8 dBi
Length 465mm
1 x IP67A, B, CResIOT Merlin IoT Box/Base Station Client,
SSH Access, Custom configurable for other
network servers
ResIOT-X7-ETH-2-915-G0902.928 MHzResIOT X7 Carrier-grade Base station 16 channels 915Mhz(2x8), GNSS, Ethernet, PoE,Full duplex support.
Included: 1xPole and Wall mount bracket, 2xLoRa Antenna omni 915MhZ IP67 465x27mm 3.8 dBi, 1xGPS/GLONASS Antenna IP67
16YES1 x IP67N2 x IP67 3.8 dBi
Length 465mm
NA, B, CResIOT Merlin IoT Box/Base Station Client,
SSH Access, Custom configurable for other
network servers
ResIOT-X7-LTE-2-915-G0902.928 MHzResIOT X7 Carrier-grade Base station 16 channels 915Mhz(2x8), GNSS, Ethernet,LTE/4G/3G/2G Modem, PoE,Full duplex support.
Included: 1xPole and Wall mount bracket, 2xLoRa Antenna omni 915MhZ IP67 465x27mm 3.8 dBi, 1xGPS/GLONASS Antenna IP67, 2xLTE Antenna IP67
16YES1 x IP67YES2 x IP67 3.8 dBi
Length 465mm
1 x IP67A, B, CResIOT Merlin IoT Box/Base Station Client,
SSH Access, Custom configurable for other
network servers
ResIOT-X7-ETH-3-915-G0902.928 MHzResIOT X7 Carrier-grade Base station 24 channels 915Mhz(3x8), GNSS, Ethernet, PoE,Full duplex support.
Included: 1xPole and Wall mount bracket, 2xLoRa Antenna omni 915MhZ IP67 465x27mm 3.8 dBi, 1xGPS/GLONASS Antenna IP67
24YES1 x IP67N3 x IP67 3.8 dBi
Length 465mm
NA, B, CResIOT Merlin IoT Box/Base Station Client,
SSH Access, Custom configurable for other
network servers
ResIOT-X7-LTE-3-915-G0902.928 MHzResIOT X7 Carrier-grade Base station 24 channels 915Mhz(3x8), GNSS, Ethernet,LTE/4G/3G/2G Modem, PoE,Full duplex support.
Included: 1xPole and Wall mount bracket, 2xLoRa Antenna omni 915MhZ IP67 465x27mm 3.8 dBi, 1xGPS/GLONASS Antenna IP67, 2xLTE Antenna IP67
24YES1 x IP67YES3 x IP67 3.8 dBi
Length 465mm
1 x IP67A, B, CResIOT Merlin IoT Box/Base Station Client,
SSH Access, Custom configurable for other
network servers
