Description

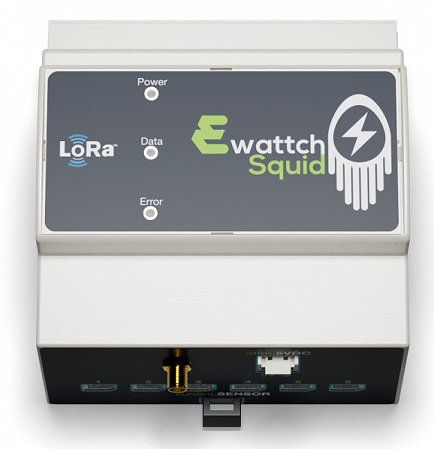

Squid is a general LoRaWAN™ device for sub-meter your single or three-phases electrical installation.
Installed in an electric panel, the 12 Squid clamps allow you to sub-meter the totality of your installation, without any type of modification.
This devices supports four size of clamp: 10, 16, 24 and 36mm.
The radio transmission is based on LoRaWAN™ long range technology at EU863-870 MHz.
Technical Features
| Manufacturer | Ewattch |
| Manufacturer Code | Squid |
| Frequency | EU863-870 |
| Maximum Current | 600A |
| Modulation | LoRaTM |
| Power Supply | 5V DC |
| Dimension | 90 x 88 x 62 mm |
| Temperature range | +5°< T < +40°C |
ResIOT Fully Preconfigured Model Uplink
| Node Fields | Events |
| Channel1 | CriticalBatteryLevel |
| Channel2 | LowBatteryLevel |
| Channel3 | |
| Channel4 | |
| Channel5 | |
| Channel6 | |
| Channel7 | |
| Channel8 | |
| Channel9 | |
| Channel10 | |
| Channel11 | |
| Channel12 | |
| SensorType | |
| FirmwareVersion | |
| BatteryLevel | |
| TransmissionTime |
