Decentlab: Liquid Level / Pressure, Temperature, Electrical Conductivity

Decentlab

Description

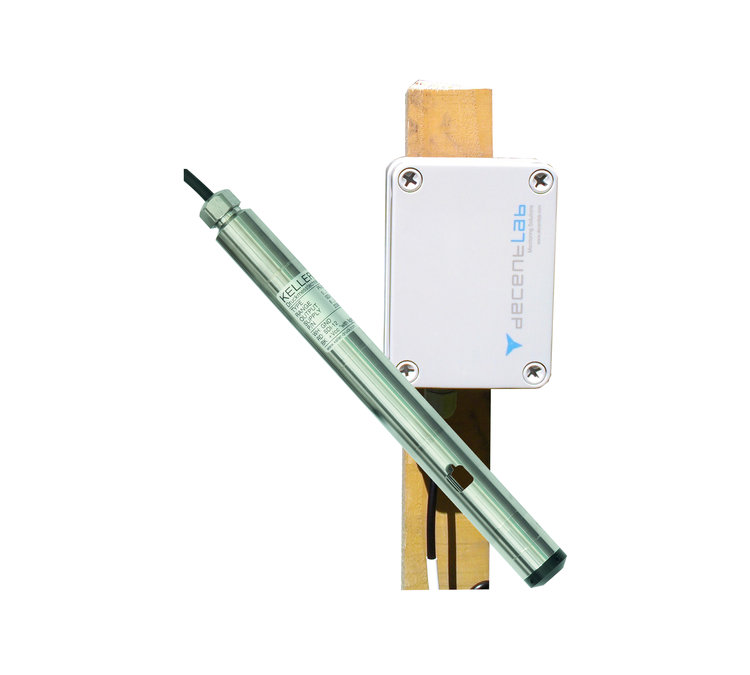

A floating piezoresistive sensor element measures pressure in liquids. It is a perfect sensor for a variety of long term water level monitoring applications.

This sensor is a cost-effective solution for applications where precision, low-power, and resistance rating is needed.

Absolute or relative pressure sensor for leveling

High resolutonn IP67 weather resistantn piezo resistve technology



ResIOT Preconfigured Model

Technical Features


Manufacturer Decentlab GmbH
Manufacturer Code KELLER 36 Xi W CTD
Frequency EU863-870
Enclosure Weatherproof IP67n impact and UV- resistant
polycarbonate enclosure
Modulation LoRaWAN™
Supply Internal batery 2 x C-type
Dimension 80 x 135 x 70 mm
Operating Temperature -30°C to 60°C

ResIOT Preconfigured Model

ResIOT Fully Preconfigured Model Uplink/Downlink


Node Fields
Temperature
BatteryVoltage
Pressure
Version
DeviceId
