ResIOT® X4S-A
All-In-One solution for off-grid Solar LoRaWAN networks

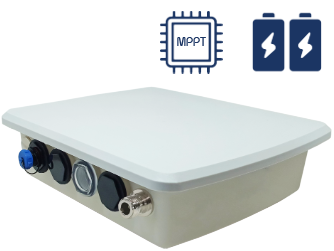

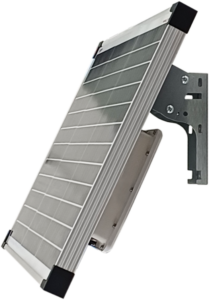

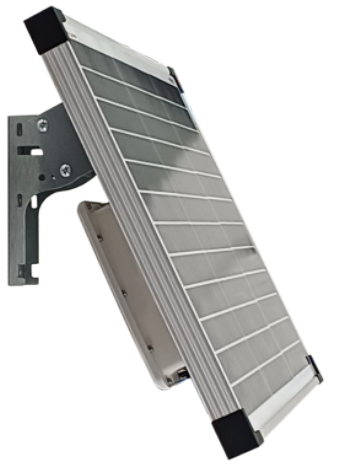

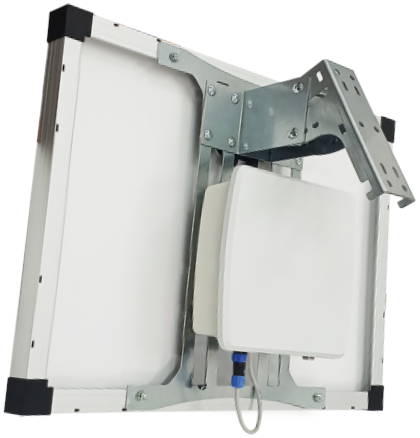

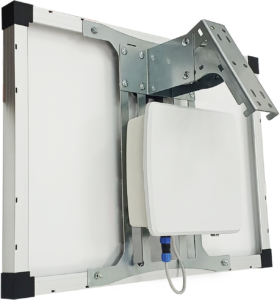

ResIOT® X4S-A is an all-in-one Solar LoRaWAN® Gateway, completely autonomous, designed for rapid and outdoor deployments. It integrates mounting brackets for pole or wall installation and a 50W solar panel, ensuring complete energy independence and fast deployment in every environment.
Thanks to its IP67 enclosure, waterproof connectors and solar-powered design, ResIOT® X4S-A is ideal for remote and off-grid applications. It delivers reliable, low-power, wide-area connectivity for M2M and IoT projects, making it perfectly suited for Smart Grid, Energy, TLC and Broadcasting scenarios.
ResIOT® X4S-A
All-In-One solution for off-grid Solar LoRaWAN networks
ResIOT® X4S-A is an all-in-one Solar LoRaWAN® Gateway, completely autonomous, designed for rapid and outdoor deployments. It integrates mounting brackets for pole or wall installation and a 50W solar panel, ensuring complete energy independence and fast deployment in every environment.
Thanks to its IP67 enclosure, waterproof connectors and solar-powered design, ResIOT® X4S-A is ideal for remote and off-grid applications. It delivers reliable, low-power, wide-area connectivity for M2M and IoT projects, making it perfectly suited for Smart Grid, Energy, TLC and Broadcasting scenarios.
8 RADIO CHANNELS
AVAILABLE
8 RADIO CHANNELS AVAILABLE
LoRa® Multi-SF 8-channel radio card, able to receive up to 8 LoRa® modulated packets simultaneously
EMBEDDED
SOLAR PANEL
EMBEDDED SOLAR PANEL

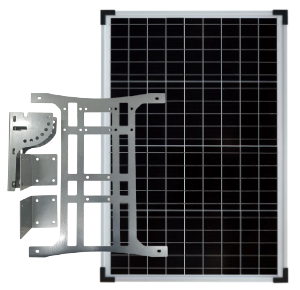

Embedded 50W solar panel for complete off-grid autonomy of the installation. Mounting bracket and supports included!
ResIOT® Merlin IoT Box software pre-installed and ready to be used. The complete web panel for your gateway management and configuration
FULL REMOTE
MANAGEMENT
FULL REMOTE MANAGEMENT
Cloud platform included for the full remote management and configuration of your ResIOT® gateway
GLOBAL CONNECTIVITY FOR YOUR DEVICES!
Chip SIM MFF2 included and ready to be activated and MicroSIM 3FF slot available for worldwide connectivity! In addition you can use your own SIM Card or the Wi-Fi connection, available on the device as an option.
Technical Features

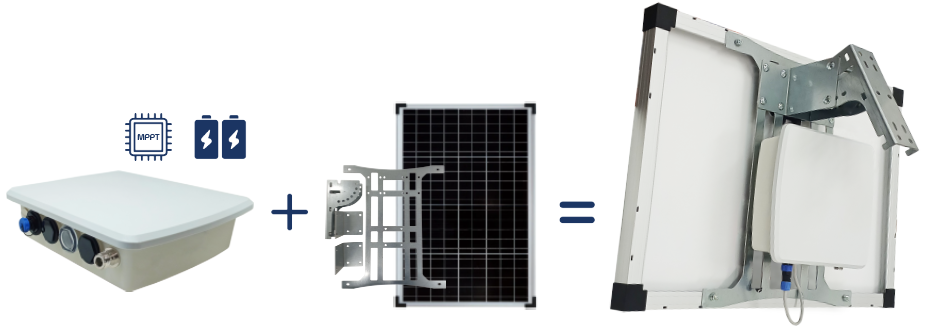

All-In-One Solar Solution
Embedded 50W solar panel, internal MPPT charge controller, and embedded LiFePO₄ batteries providing up to 4 days of operation with no sunlight.
Ultra-fast Installation
Only one operator is required for installation. Deployment is extremely fast thanks to the specially designed mounting brackets (included).
CPU Cortex-A7 629MHz | RAM 512Mb | eMMC Flash 4Gb
Cache 32 KB-I, 32 KB-D, 128 KB L2
Data Retention
In case of loss of network connection between gateway and network server the arrived radio messages are not lost, they are saved in memory and forwarded to the network server when the connection is restored.
ChipSIM MFF2 | MicroSIM 3FF Slot
Chip SIM MFF2 included and ready to activate (worldwide connectivity! Visit sim.resiot.io). MicroSIM 3FF slot available. You can use your own SIM Card (ChipSIM will be automatically deactivated)
Modem 2G 3G/4G LTE | GPS GNSS | Wifi
Modem Quectel EG91x 2G-3G-4G LTE, GPS module ublox MAX-M8Q (concurrent reception of up to 3 GNSS), optional Wifi
Waterproof case IP67 | -40 / +85 °C | 10%-95% H
Waterproof case IP67, waterproof components and connectors. It is able to operate in an industrial temperature range from -40 ° C up to + 85 ° C with a humidity range of 10% – 95%
Semtech SX1303
8 Multi-SF LoRa® Channels, Listen before talk, Fine Timestamp capability for Time Difference of Arrival (TDOA & network-based geolocation), Able to receive up to 8 LoRa® modulated packets simultaneously
LoRaWAN® Classes A, C
Support for classes A, C
Embedded sensors
Embedded Accelerometer, Shock, Inclination, Temperature & Humidity Sensors
Software ResIOT® Base Station Client/Merlin IoT Box
Software Features
Secure connection from gateway to network server
Secure TCP, protocol: Websocket, Mqtt and Rest API to network server
Automated and centralized configuration
Completely automated and centralized, all the parameters are configured within the network server and then takes care of sending them correctly to the gateways
Radio Channel configuration
Custom remote channel configuration. Automatic reconfiguration of channels for gateways and devices
Data retention
In case of loss of network connection between gateway and network server the arrived radio messages are not lost, they are saved in memory and forwarded to the network server when the connection is restored.
Health check and gateway status
Advanced watch dog for Gateway hardware / software Automatic restart of network,services or system in case of fail Radio card, LTE/Ethernet connection
Monitoring and reporting
Full monitoring of all parameters: Disk, Memory, Cpu, ethernet or 2G/3G/4G LTE quality connection. All data is sent periodically to the network server and visible through graphs and reports
Alert management
It is possible to configure different types of alerts by configuring
different alert thresholds for: timeout, 2G/3G/4G LTE connection quality, disk errors, full Ram … The alerts can be configured and sent by ResIOT® with email, Snmp server, Snmp trap, Modbus, generic Curl call, etc … through the ResIOT® platform functions and programmable in Lua scripts
Software management
Through web interface [gateway ip: 50056], API or remotely through ResIOT® Network Server
VPN management
It is possible to configure and send the VPN configuration remotely
Remote access
the gateways are accessible via Ssh or web directly from the ResIOT® platform through ResIOT® Gateway Remote Access Server
Reverse proxy support
It is possible to configure a reference server (ResIOT® Reverse Proxy) for direct access via SSH or web interface to the gateway even without VPN. ResIOT® manages a secure connection only if requested
Autoprovisioning
With the ResIOT® Autoprovisioning functionality, the gateway automatically configures itself to the LoRaWAN® network without the need for other interventions. The gateway is completely manageable remotely. It also has a practical web control interface
Easy installation wit App IoS/Android and QRCODE
For the supported models it is possible to create a QRCODE on the label to be pasted on the gateways (by default on the ResIOT® X2,X4, X7 gateways we produce). Through the IoS / Android ResIOT mobile app it is possible to connect a gateway to the network in just a few seconds and safely.
Supported OS & Live Updates
Linux 32/64 bit & Arm/Linux. Available and automatic Live Updates
Four modes of use available:
- LoRaWAN® Gateway with ResIOT® Merlin Base Station Client (for business or carrier-grade networks with full remote control and secure connection with ResIOT® GW Remote Access Server)
- LoRaWAN® Gateway with Semtech™ Packet Forwarder
- Industrial IoT Box. On-premises ResIOT® LoRaWAN® Network Server and ResIOT® IoT Platform all in a box with free unlimited license
- Hybrid Mode 1+3 LoRaWAN® Gateway with ResIOT® Merlin Base Station Client & Industrial IoT Box
| Category | Download | Date | |
|---|---|---|---|
| Datasheet | ResIOT® X4S Datasheet V1.2 (EN) | 2025-01-14 |
Ultra fast single-person deplyment

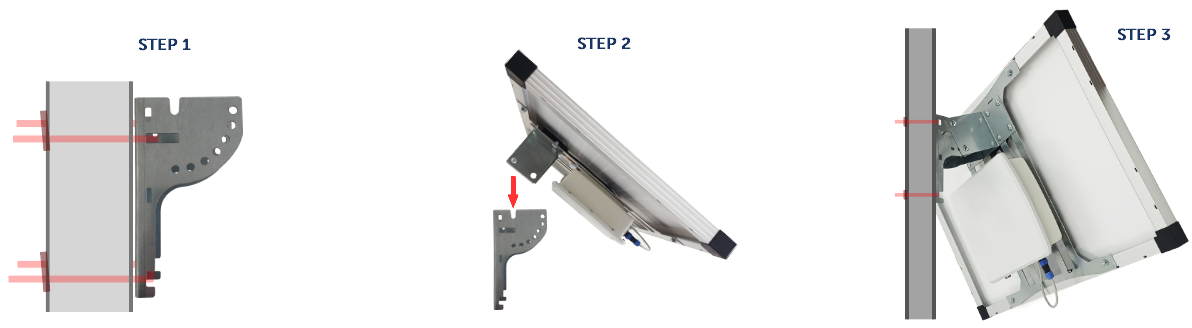

The ResIOT® X4S-A has been designed for extremely fast and straightforward installation, allowing single-person deployment without specialized tools and without the need to hold any weight during mounting or adjustment operations. The installation process consists of three simple steps:
- Mount the P-shaped bracket: secure the custom-designed P-shaped mounting bracket to a pole or wall. The bracket is fully designed, engineered, and manufactured in-house, ensuring robustness and perfect compatibility. It supports both pole mounting (for poles of various diameters) and wall mounting through dedicated holes for wall anchors.
- Attach the gateway and solar panel assembly: hang the gateway and solar panel body onto the slots located at the top of the bracket. The assembly pivots on a through-bolt inserted into the two fixing flanges, providing a stable and secure mechanical support while simplifying handling during installation.
- Adjust the solar panel tilt angle: set the optimal solar panel inclination according to the geographical location. The tilt angle is adjustable from 0° to 90°, with pre-defined 15° locking steps to ensure precise, reliable and repeatable positioning.
